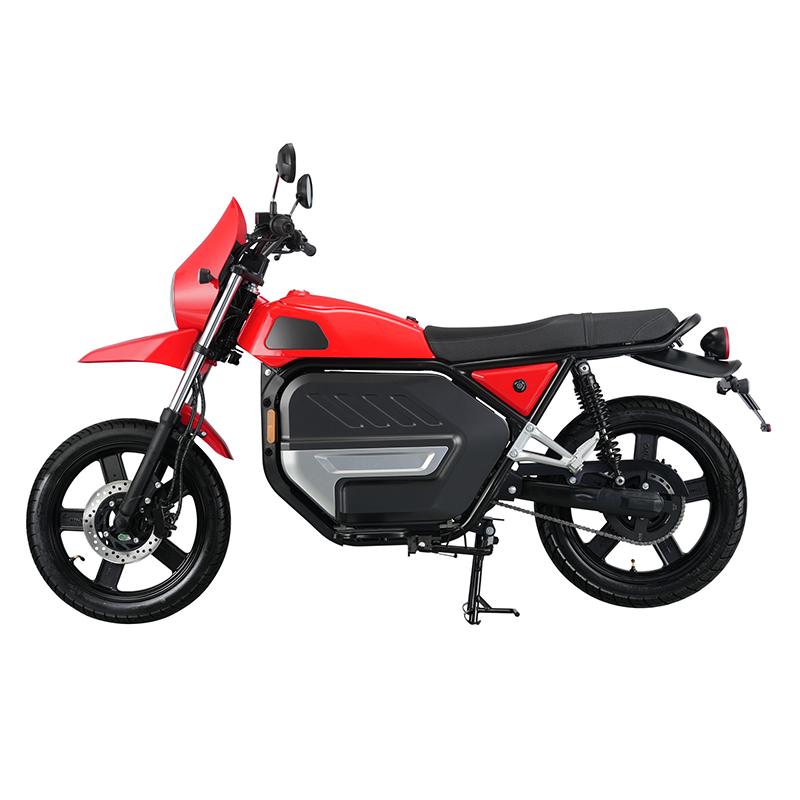

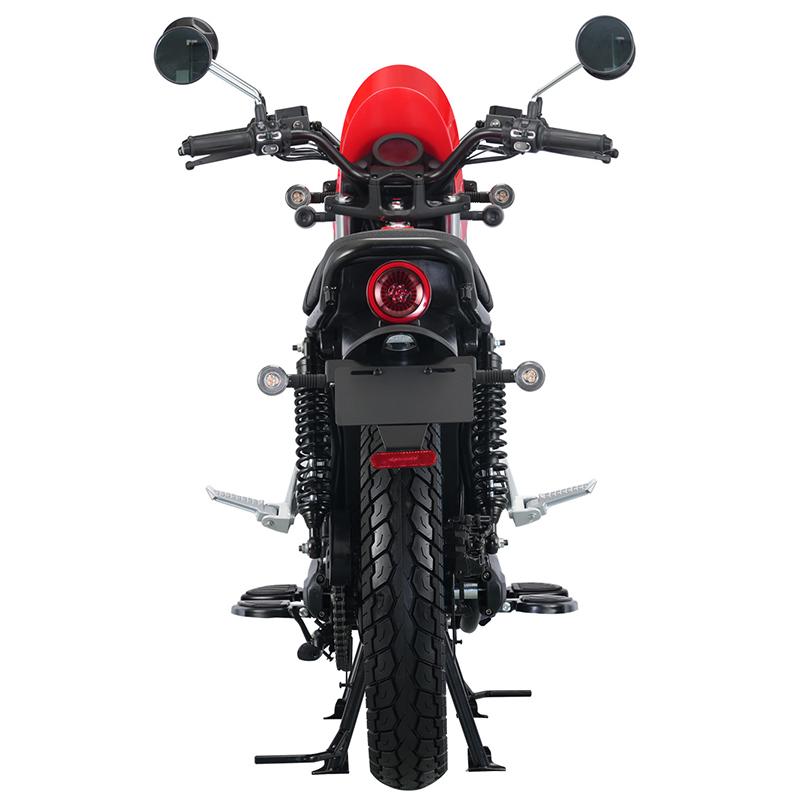

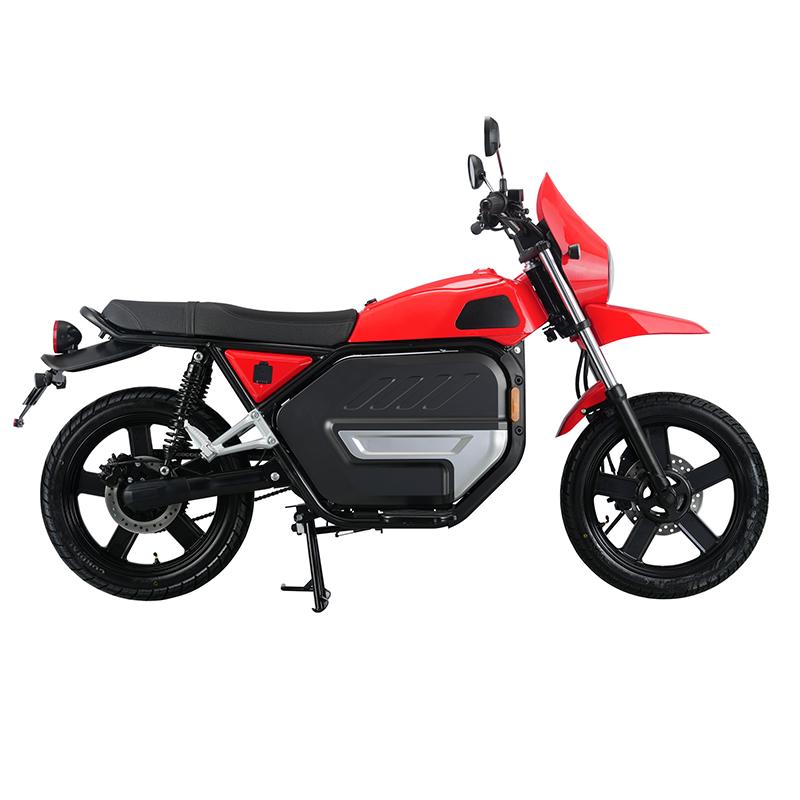

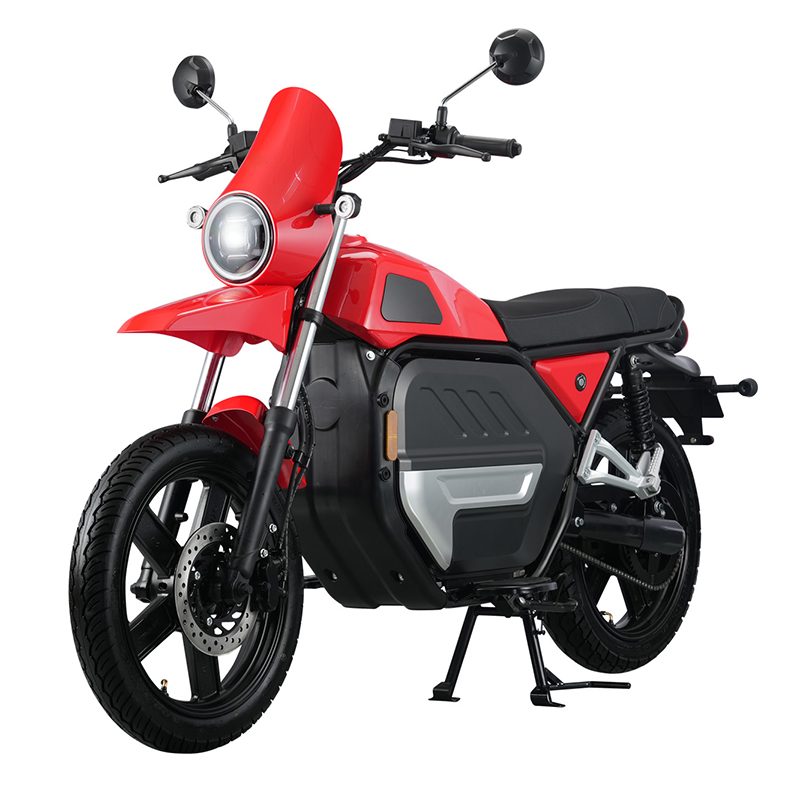

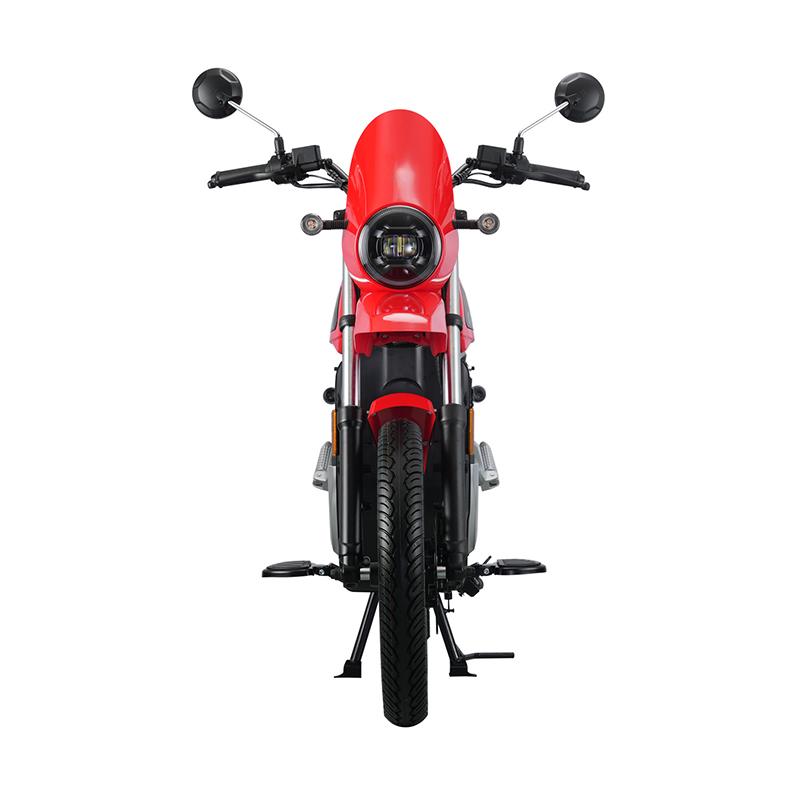

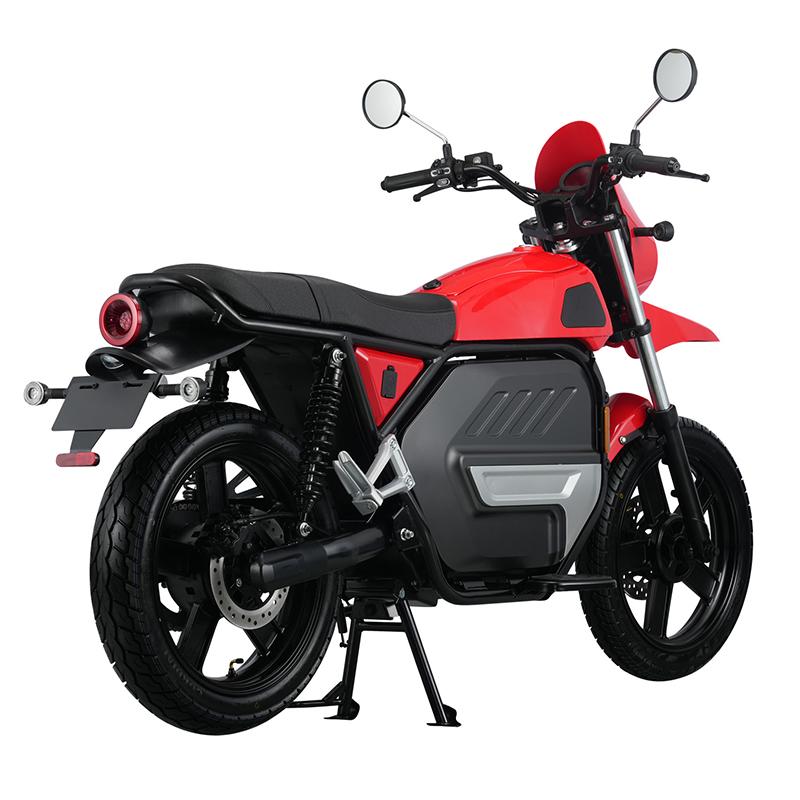

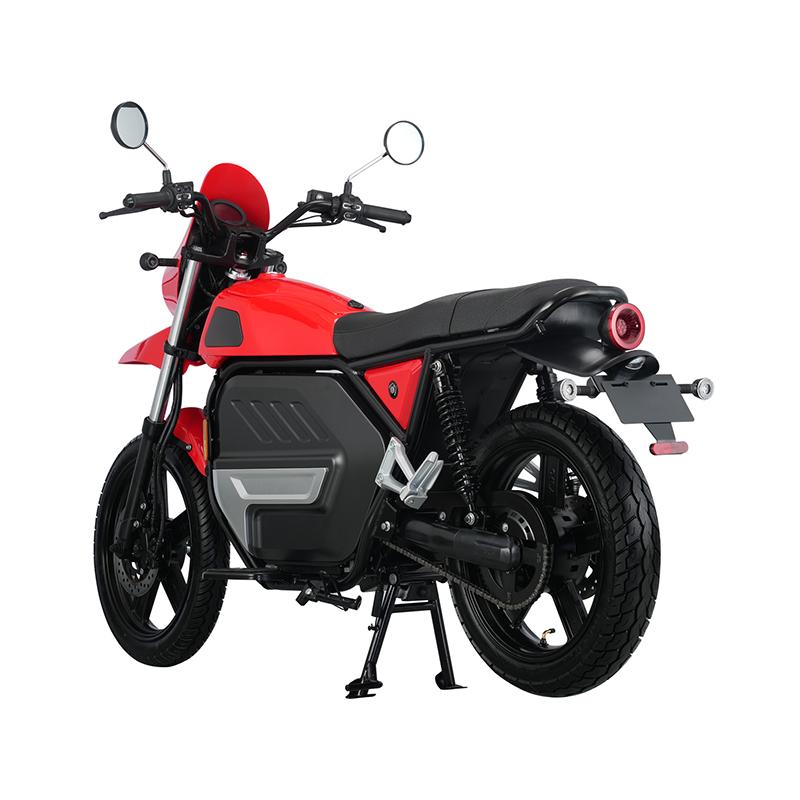

Motocicleta eléctrica todoterreno
JB-TDP05L
Como fabricante especializado en soluciones de movilidad eléctrica de alto rendimiento, presentamos la motocicleta eléctrica más rápida, diseñada para ofrecer el máximo rendimiento. En esencia, se encuentra un avanzado sistema de energía de batería dual para bicicletas eléctricas, que funciona en conjunto con un motor de tracción media de alto rendimiento para brindar una aceleración explosiva y un alcance extendido. El cuadro de aleación reforzada, la suspensión sensible y los potentes frenos trabajan en armonía para garantizar una estabilidad inquebrantable y un control preciso a cualquier velocidad. Esta máquina está diseñada sin concesiones para ciclistas que exigen lo último en rendimiento, ofreciendo la potencia y la libertad ampliadas que solo una verdadera plataforma de bicicleta eléctrica con batería dual puede brindar.
Características clave de la bicicleta eléctrica
- Motor medio de 4000 W de alto rendimiento
- Sistema de batería dual de 74V28Ah
- Estructura de marco de aleación reforzada
- Suspensión hidráulica avanzada
- Capacidad de alta velocidad de 80 KM/H
- Versatilidad todoterreno y en carretera
4000W
Mid Motor
74V28AH*2
Battery
LED
Display
80KM/H
Max Speed
120KM
Driving Distance
Alloy
Frame
125kg
Weight
Hydraulic
Disc Brake
F: Telescopic hydraulic
R: Hydraulic adjustable
F:110/80-19.3.00-17
R:120/90-17,110/80-17
Gama de productos JOBO
Presentación de vídeos
JOBO FACTORY Electric Motorcycle – The Future of Riding is Here!
Why Choose This Motorcycle
From weaving through city streets to dominating open highways and challenging off-road routes, this motorcycle turns every ride into an adrenaline-charged experience. Designed for those who seek freedom and speed, it redefines electric mobility—whether for daily commuting, long-distance touring, or pure high-speed adventure.
Visualización de detalles
4000W Mid Motor
Powerful 4000W mid-drive motor delivers extreme acceleration and high-speed performance.
74V28AH*2 Battery
Dual 74V 28AH battery system ensures massive capacity and extended riding range.
Hydraulic Adjustable
Hydraulic adjustable suspension enhances comfort and stability with customizable damping.
Hydraulic Disc Brake
High-performance hydraulic disc brakes provide precise and reliable stopping power at any speed.
Especificaciones detalladas
Dimension2100*760*1165 MM
Wheel Base1460 MM
Ground Clearance150 MM
Seat Height780 MM
Weight Without Battery119 KG
MAX Load180 KG
Tire Size: F/RF:110/80-19,3.00-17 R:120/90-17,110/80-17
Wheel MaterialAlloy Wheels
BrakeF/R:Disc Brake With CBS
LightHeadlight Convex Lens ; Others LED
Front SuspensionTelescopic Aluminium hydraulic suspension
Rear SuspensionHydraulic adjustable suspension
Max.Female Current80A120A
Max. Phase Current380A
MOSFET Qty (M)18
TypeMid-Motor
Power(Rated)4000 W
Power(Peak)7000 W
On-wheel Torque(Rated)44.7 NM
On-wheel Torque(Peak)290 NM
Speed80 KM/H
Gradeability(%)30%
Range(45km/h)60 (Single Battery) 120 KM(Dual Battery)
Output Voltage/Current74V8A
Charging Time2.5-3H
Display Type/SizeLED
Display ConnectivityCAN
Battery Capacity74V28A*2 (Swapping)
Battery Qty1*2pcs
PACKING SIZE CBU2225*490*1212
LOADING QTY/CBU: 40HQ PCS/SETS48 (*steering dismantled)
LOADING QTY/CKD: 40HQ PCS/SETS75
Preguntas frecuentes
Respuestas a las preguntas más comunes sobre productos, pedidos, envíos y pagos.
What is the battery configuration and range of this electric off road motorcycle?
The electric off road motorcycle uses a 74V28Ah dual-battery system, offering a range of 120KM at 45km/h, ideal for long-distance off-road adventures and urban commutes.
How powerful is the motor, and what is the top speed?
It features a 4000W mid-motor (7000W peak) with 290Nm torque, enabling a sustained top speed of 80KM/H and conquering 30% inclines.
What safety features does the electric off road motorcycle include?
Equipped with front/rear disc brakes with CBS (Combined Braking System) and hydraulic suspension (telescopic front, adjustable rear) for stable, controlled stops and shock absorption.
What is the weight and load capacity?
The bike weighs 119KG without batteries and supports a maximum load of 180KG, suitable for both riders and cargo.
What tire sizes are used, and why are they suitable for off-road?
Front: 110/80-19 & 3.00-17; Rear: 120/90-17 & 110/80-17. The wide tires provide high traction on loose terrain and stability at high speeds.
How long does it take to charge the batteries?
Charging time is 2.5-3 hours with a 74V8A charger, supporting quick turnaround for back-to-back rides.
Is the motorcycle suitable for commercial use?
Yes, it’s ideal for commercial rental/sharing fleets in tourist areas or urban mobility, offering eco-friendly, low-maintenance operation.
Can JOBO customize battery capacity or add swappable systems?
Yes, JOBO can modify battery capacity (e.g., higher Ah ratings) or integrate swappable battery systems for extended usability in rental fleets.
Does JOBO offer performance upgrades for motors or controllers?
Yes, JOBO can upgrade motors to higher power outputs (e.g., 5000W+) or optimize controllers for faster acceleration and torque adjustments.
Can the motorcycle’s suspension or frame be customized for specific terrains?
Yes, JOBO provides custom suspension tuning (e.g., stiffer shocks for off-road) and frame materials (e.g., lightweight aluminum alloy) to match riding preferences.
