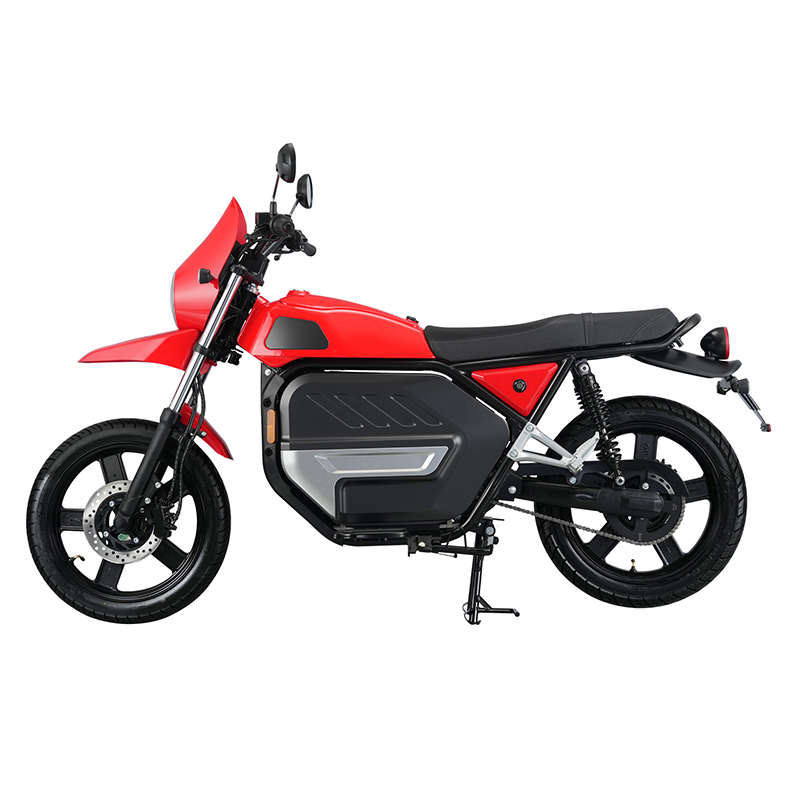

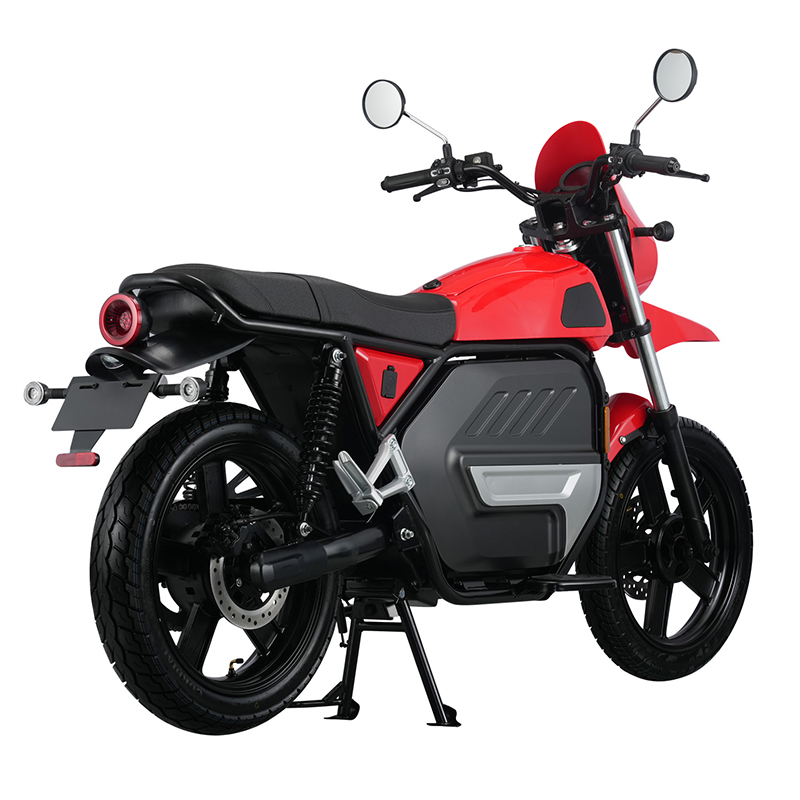

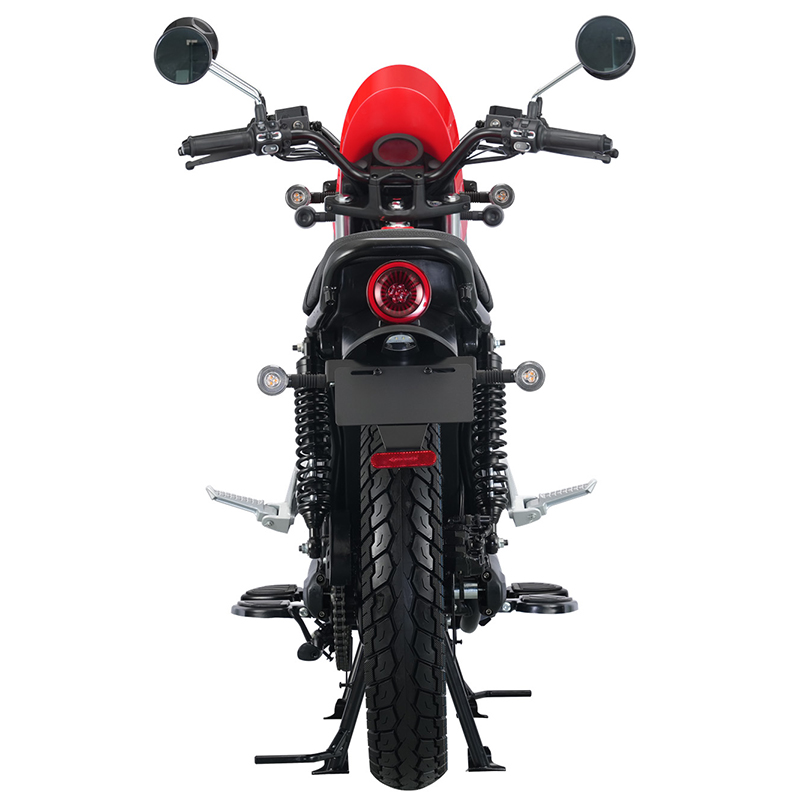

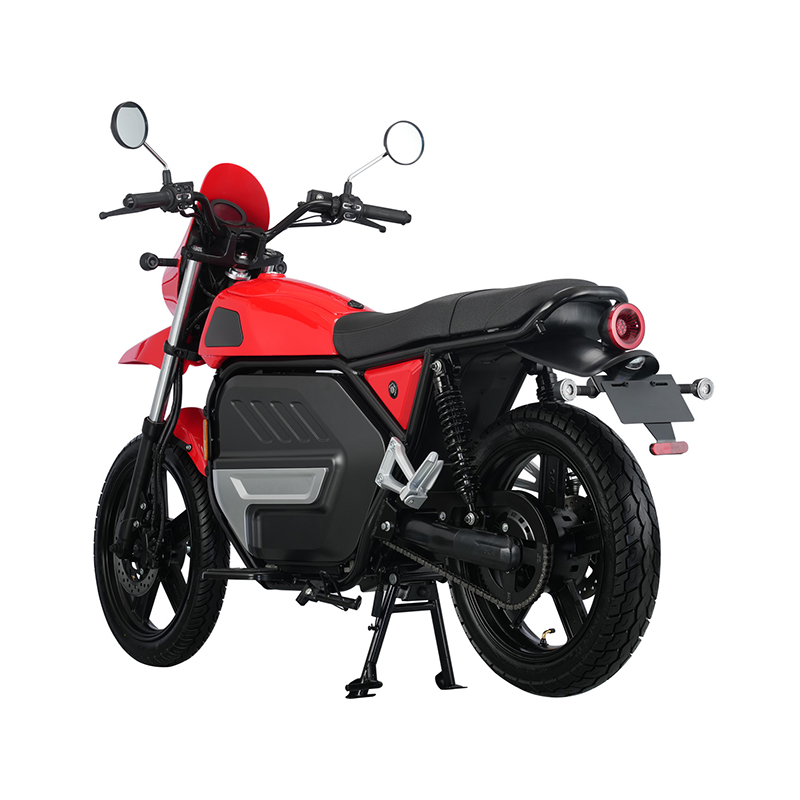

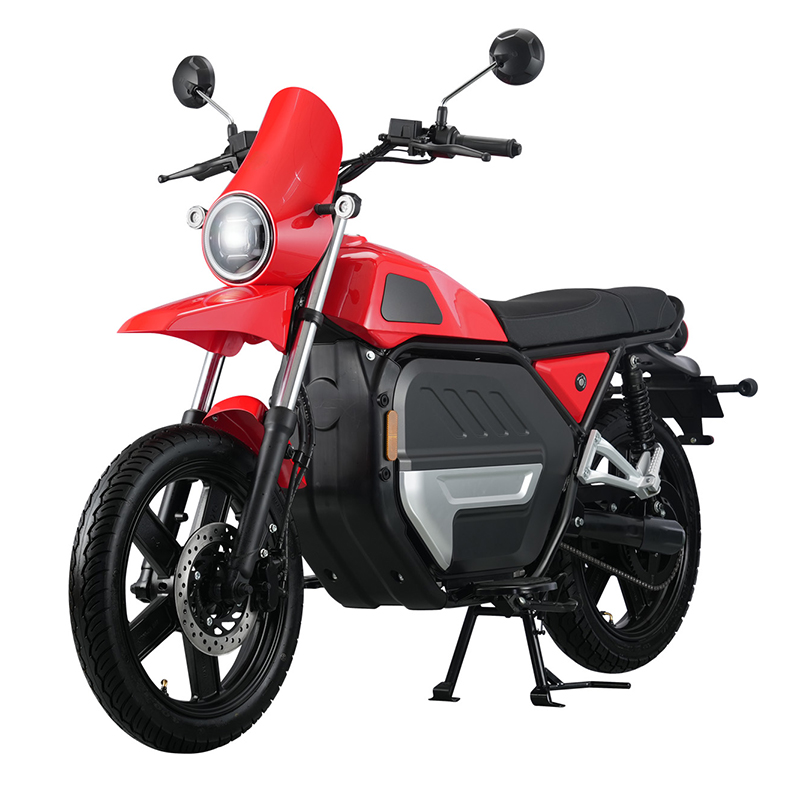

전기 오프로드 오토바이
JB-TDP05L
고성능 전기 모빌리티 솔루션 전문 제조업체로서, 우리는 최고의 성능을 위해 설계된 가장 빠른 전기 오토바이를 선보입니다. 그 핵심에는 고출력 미드 드라이브 모터와 함께 작동하여 폭발적인 가속과 확장된 주행 거리를 제공하는 고급 듀얼 배터리 전기자전거 에너지 시스템이 있습니다. 강화된 합금 프레임, 반응성이 뛰어난 서스펜션, 강력한 브레이크가 조화롭게 작동하여 어떤 속도에서도 흔들리지 않는 안정성과 정밀한 제어를 보장합니다. 이 장비는 최고의 성능을 요구하는 라이더를 위해 타협 없이 제작되었으며, 진정한 듀얼 배터리 E-자전거 플랫폼만이 제공할 수 있는 확장된 출력과 자유를 제공합니다.
주요 eBike 기능
- 고출력 4000W 미드모터
- 듀얼 74V28Ah 배터리 시스템
- 강화된 합금 프레임 구조
- 고급 유압 서스펜션
- 고속 80KM/H 성능
- 오프로드 및 고속도로의 다양성
4000W
Mid Motor
74V28AH*2
Battery
LED
Display
80KM/H
Max Speed
120KM
Driving Distance
Alloy
Frame
125kg
Weight
Hydraulic
Disc Brake
F: Telescopic hydraulic
R: Hydraulic adjustable
F:110/80-19.3.00-17
R:120/90-17,110/80-17
JOBO 제품군
비디오 쇼케이스
JOBO FACTORY Electric Motorcycle – The Future of Riding is Here!

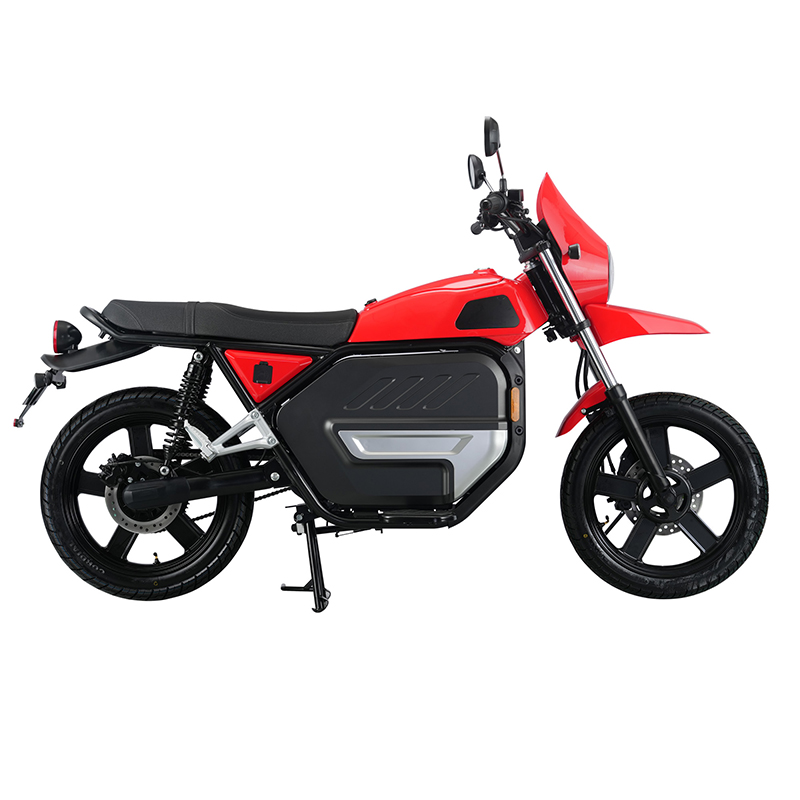

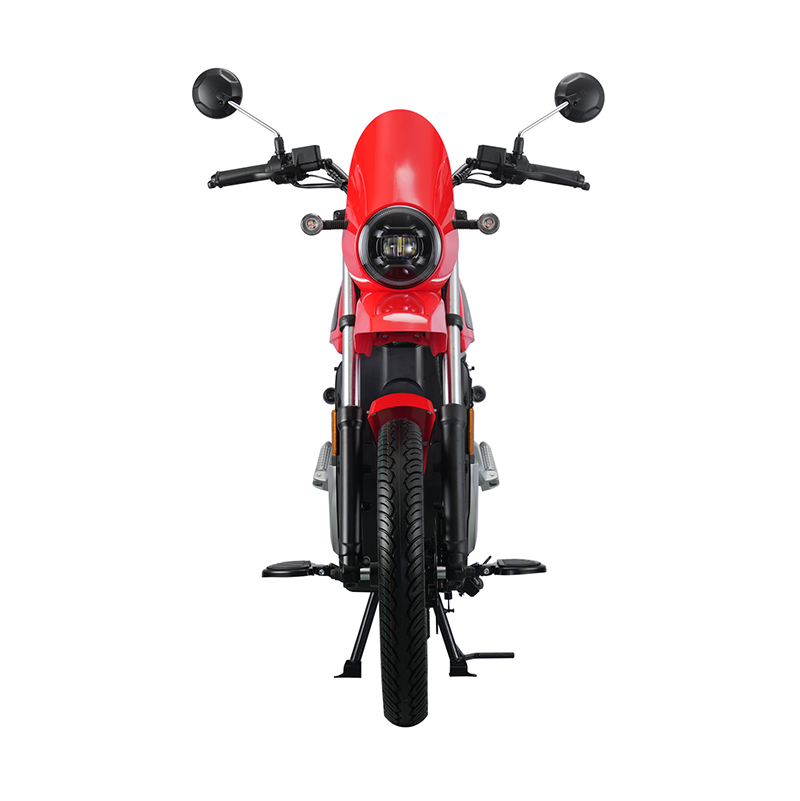

Why Choose This Motorcycle
From weaving through city streets to dominating open highways and challenging off-road routes, this motorcycle turns every ride into an adrenaline-charged experience. Designed for those who seek freedom and speed, it redefines electric mobility—whether for daily commuting, long-distance touring, or pure high-speed adventure.
세부정보 표시

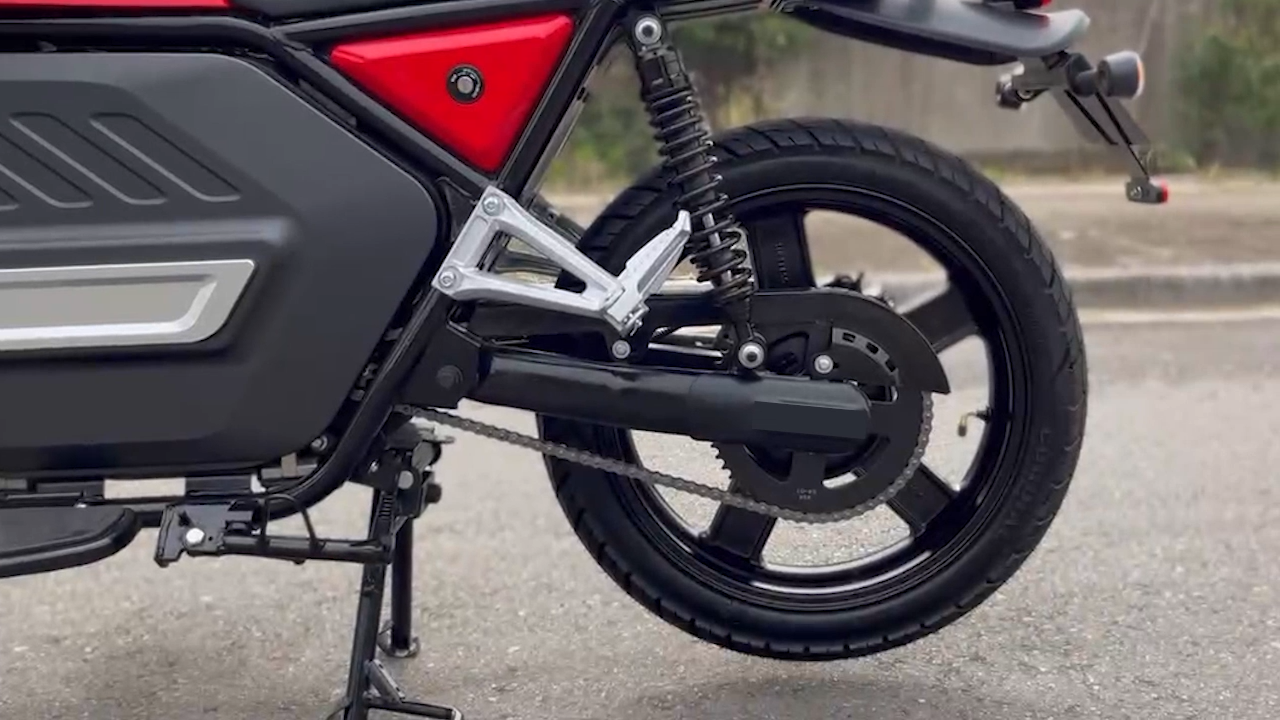

4000W Mid Motor
Powerful 4000W mid-drive motor delivers extreme acceleration and high-speed performance.

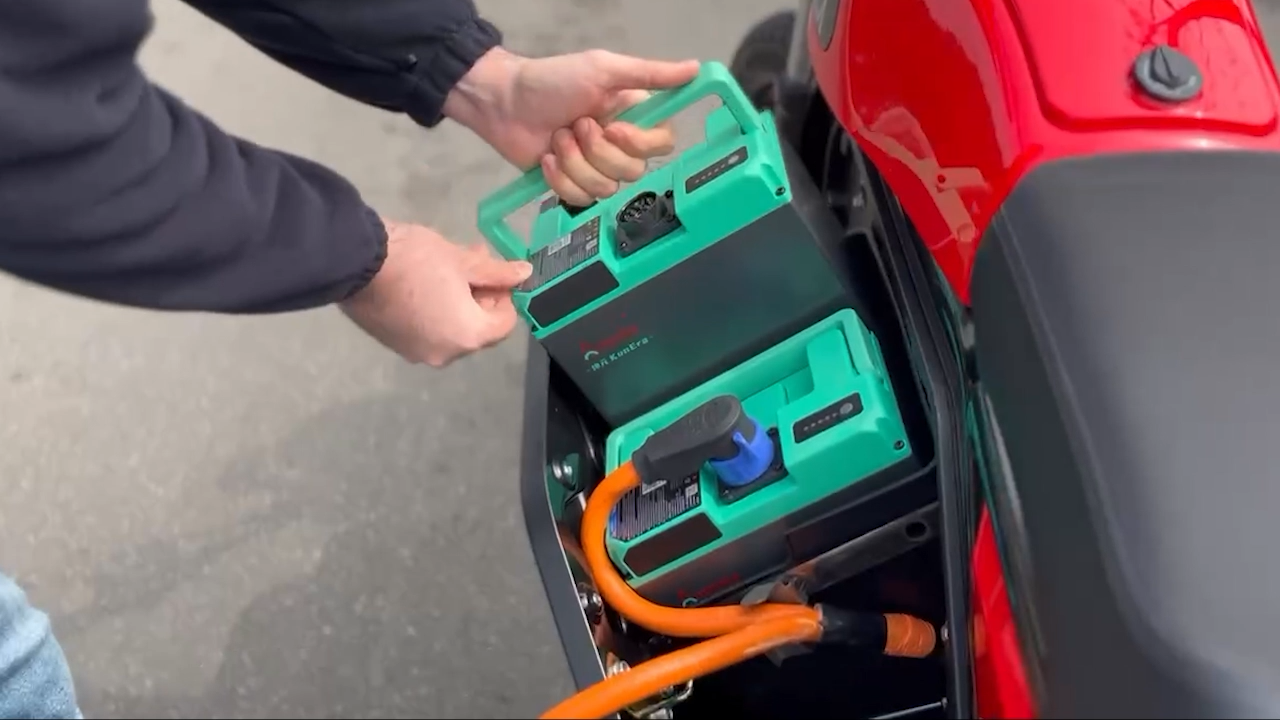

74V28AH*2 Battery
Dual 74V 28AH battery system ensures massive capacity and extended riding range.

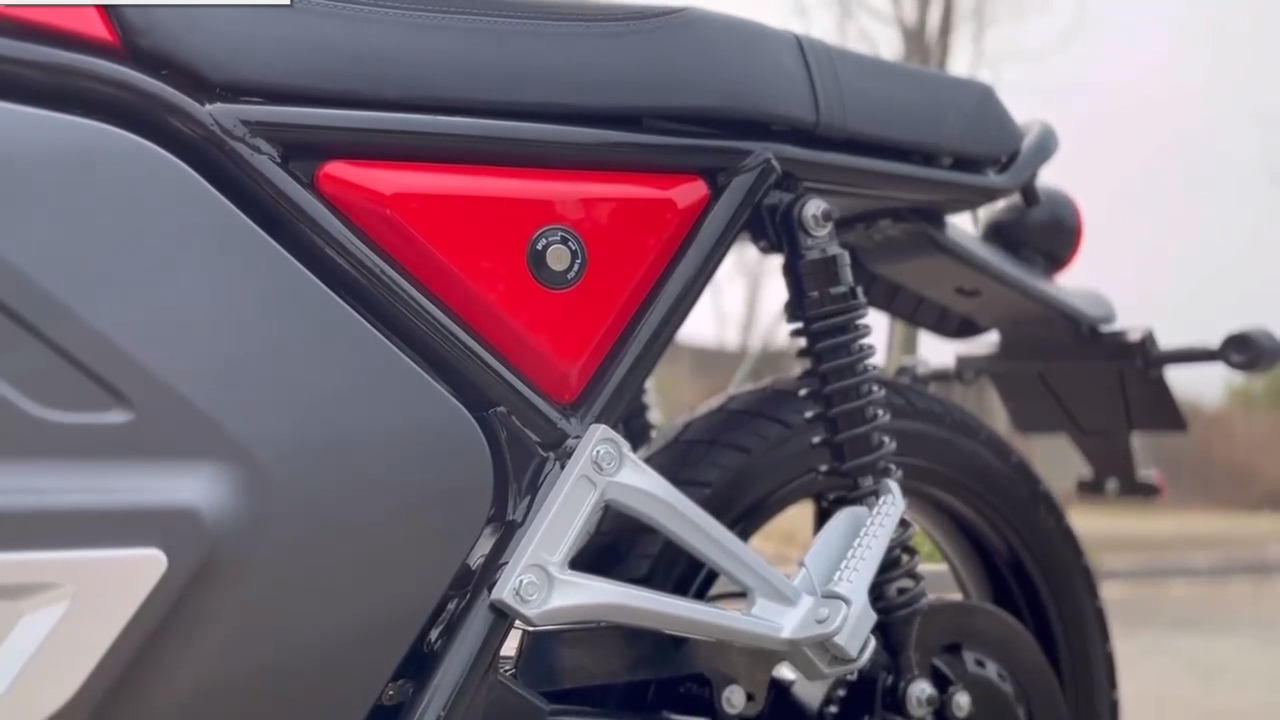

Hydraulic Adjustable
Hydraulic adjustable suspension enhances comfort and stability with customizable damping.

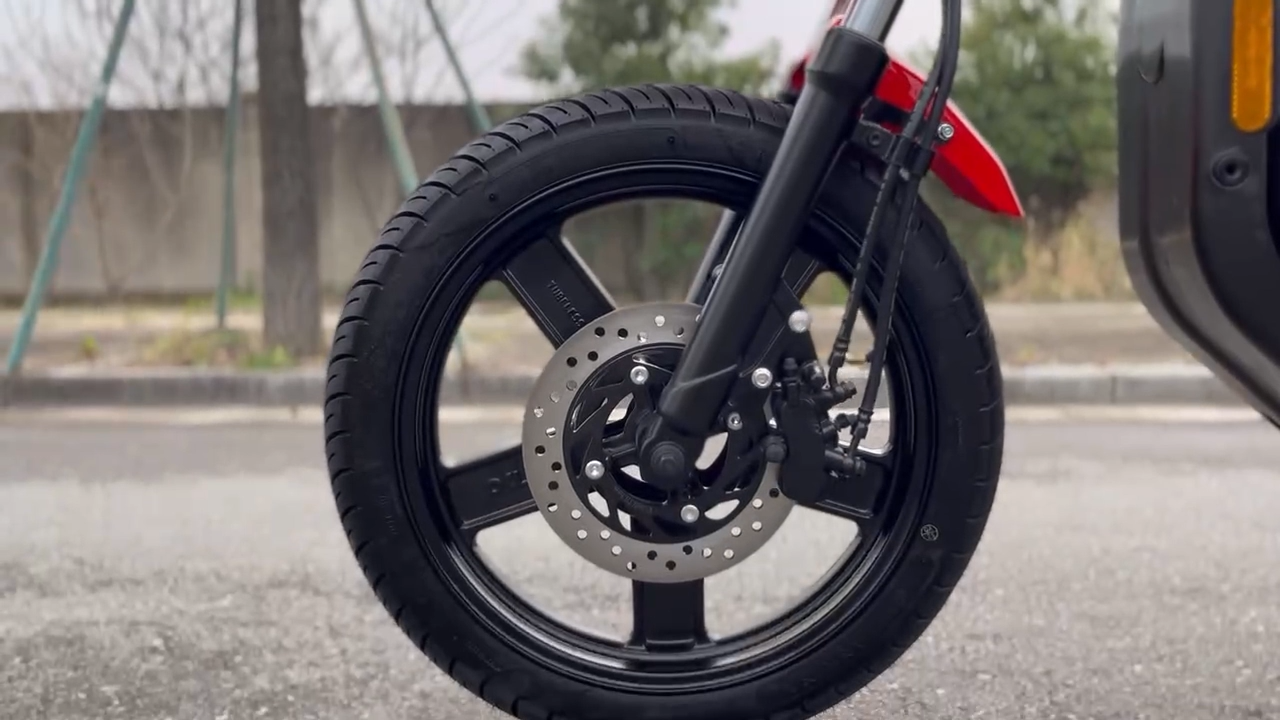

Hydraulic Disc Brake
High-performance hydraulic disc brakes provide precise and reliable stopping power at any speed.
상세사양
Dimension2100*760*1165 MM
Wheel Base1460 MM
Ground Clearance150 MM
Seat Height780 MM
Weight Without Battery119 KG
MAX Load180 KG
Tire Size: F/RF:110/80-19,3.00-17 R:120/90-17,110/80-17
Wheel MaterialAlloy Wheels
BrakeF/R:Disc Brake With CBS
LightHeadlight Convex Lens ; Others LED
Front SuspensionTelescopic Aluminium hydraulic suspension
Rear SuspensionHydraulic adjustable suspension
Max.Female Current80A120A
Max. Phase Current380A
MOSFET Qty (M)18
TypeMid-Motor
Power(Rated)4000 W
Power(Peak)7000 W
On-wheel Torque(Rated)44.7 NM
On-wheel Torque(Peak)290 NM
Speed80 KM/H
Gradeability(%)30%
Range(45km/h)60 (Single Battery) 120 KM(Dual Battery)
Output Voltage/Current74V8A
Charging Time2.5-3H
Display Type/SizeLED
Display ConnectivityCAN
Battery Capacity74V28A*2 (Swapping)
Battery Qty1*2pcs
PACKING SIZE CBU2225*490*1212
LOADING QTY/CBU: 40HQ PCS/SETS48 (*steering dismantled)
LOADING QTY/CKD: 40HQ PCS/SETS75
자주 묻는 질문
제품, 주문, 배송, 결제에 관한 가장 일반적인 질문에 대한 답변입니다.
What is the battery configuration and range of this electric off road motorcycle?
The electric off road motorcycle uses a 74V28Ah dual-battery system, offering a range of 120KM at 45km/h, ideal for long-distance off-road adventures and urban commutes.
How powerful is the motor, and what is the top speed?
It features a 4000W mid-motor (7000W peak) with 290Nm torque, enabling a sustained top speed of 80KM/H and conquering 30% inclines.
What safety features does the electric off road motorcycle include?
Equipped with front/rear disc brakes with CBS (Combined Braking System) and hydraulic suspension (telescopic front, adjustable rear) for stable, controlled stops and shock absorption.
What is the weight and load capacity?
The bike weighs 119KG without batteries and supports a maximum load of 180KG, suitable for both riders and cargo.
What tire sizes are used, and why are they suitable for off-road?
Front: 110/80-19 & 3.00-17; Rear: 120/90-17 & 110/80-17. The wide tires provide high traction on loose terrain and stability at high speeds.
How long does it take to charge the batteries?
Charging time is 2.5-3 hours with a 74V8A charger, supporting quick turnaround for back-to-back rides.
Is the motorcycle suitable for commercial use?
Yes, it’s ideal for commercial rental/sharing fleets in tourist areas or urban mobility, offering eco-friendly, low-maintenance operation.
Can JOBO customize battery capacity or add swappable systems?
Yes, JOBO can modify battery capacity (e.g., higher Ah ratings) or integrate swappable battery systems for extended usability in rental fleets.
Does JOBO offer performance upgrades for motors or controllers?
Yes, JOBO can upgrade motors to higher power outputs (e.g., 5000W+) or optimize controllers for faster acceleration and torque adjustments.
Can the motorcycle’s suspension or frame be customized for specific terrains?
Yes, JOBO provides custom suspension tuning (e.g., stiffer shocks for off-road) and frame materials (e.g., lightweight aluminum alloy) to match riding preferences.
